Altys battery chargers

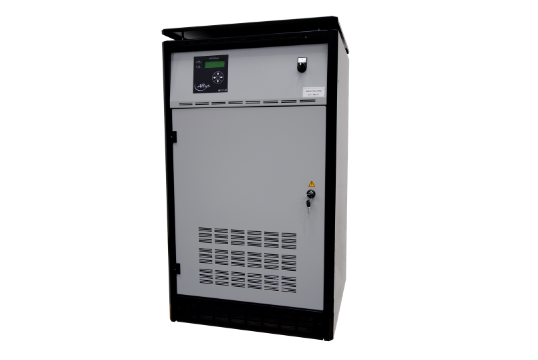

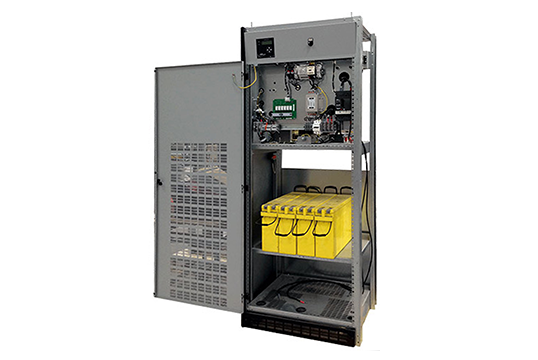

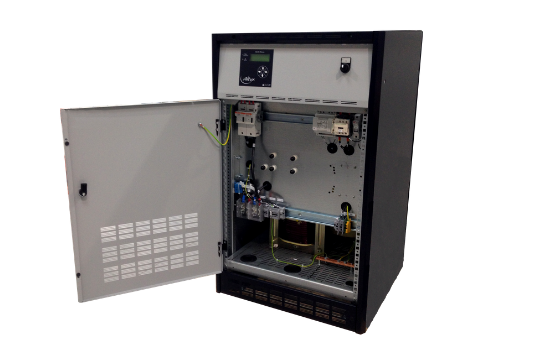

ALTYS type regulated chargers are thyristor-controlled AC/DC converters designed to provide direct current energy. It can be used as battery chargers or as stabilised power supplies. In particular, it meets the needs for direct current supply whether backed up or not by a battery assembly.

  • Proven technology
  • Mixed thyristor + diode bridge
  • Configurable to accommodate all types of batteries
  • Natural convection
  • Life span > 30 years
  • Reliable
  • Easy to use
  • Product designed and made in France
  • RTE, ERDF and EDF approved
  • Standard output voltage: 12V 24V 48V 110V 125V 220VDC (additional voltages on demand)
  • Standard output current: 25A 40A 60A 100A 160A 200A (additional wire sizes on demand)
  • 5 available operating modes:
    • Float charging
    • Equalising
    • Manual charge
    • Battery test
    • Fallback

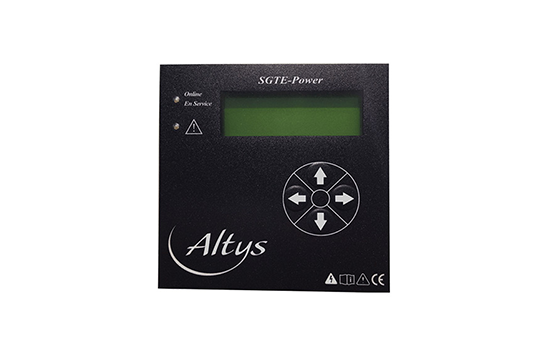

  • Front panel interface including 2 LEDs and 1 backlit LCD display
  • Used technology: rectifier technology (low frequencies)
  • RTE, ERDF, EDF approvals and qualifications
  • ALTYS rectifier chargers comply with NF EN and IEC standards

Applications

Télécommunication

Telecommunication

Ferroviaire

Rail traction

Industries

Industries

FIND OUT MORE ABOUT THE ALTYS CHARGER?

Download the ALTYS brochure
