GemPro software

GemPro is the software used to configure, to monitor and to control the GemStart5 numerical thermal protection relay. GemPro is compatible with standard PC with Windows® 7, 8 or 10 operating system.

Connection to the GemSart5 is via a standard RS232 direct cable on the LCD front face SUB-D9 pin connector.

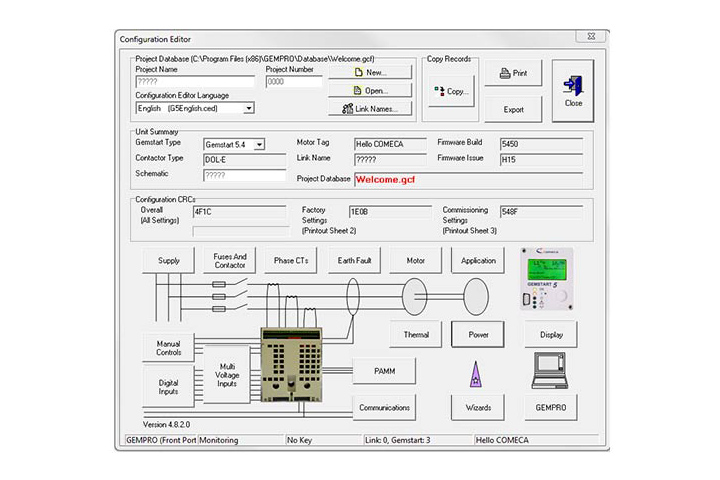

Selecting the appropriate typical schematic based on the final application :

  • DOL-E, direct start,
  • DOL-E, direct start, forward and reverse
  • STAR/DELTA
  • DOL-L, direct start with latched contactor
  • Motor operated valve
  • Two speed, low start only
  • Two speed
  • Two speed Dahlander
  • MCCB
  • VSD control only
  • Cut Throat VSD control only

Electrical protection setting:

Each of the LV or HV motor electrical protections associated with the selected typical schematic can be enabled or disabled, particularly during start-up and also during steady state.

Selecting the communication protocol:

  • Gembus ( (proprietary communication protocol)
  • Modbus RTU
  • Profibus DPV1

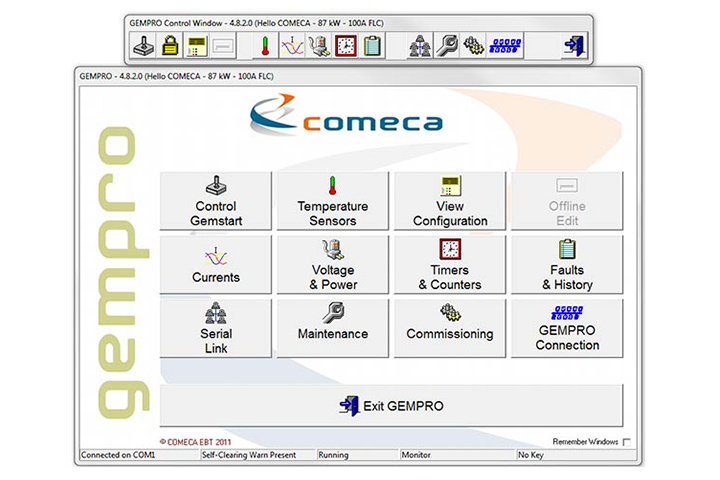

Human Machine Interface:

  • Define the configuration editor language in one click
  • Define the language of the  display of the GemStart5 in one click
  • Download other language
  • Gemstart5 firmware update facilities

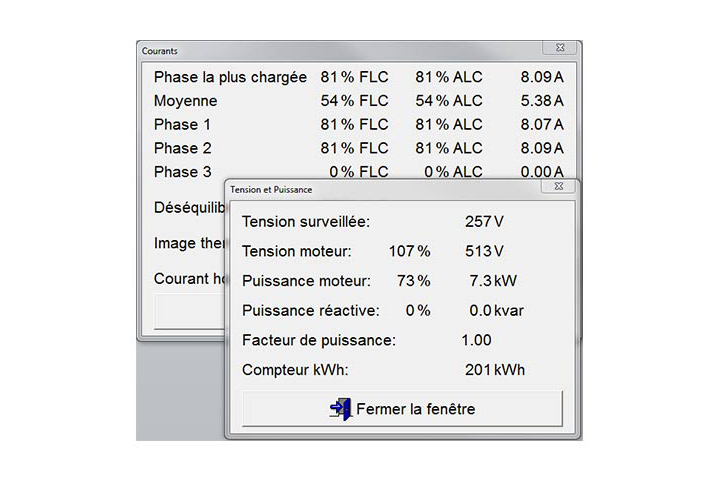

  • Motor Electrical data displayed in real time
  • Motor electrical data stored during the last start (inrush current, start-up time, …)
  • Digital Inputs and Outputs monitoring
  • Maintenance counters
  • Alarm, trip, and events histories
  • Other information used for commissioning

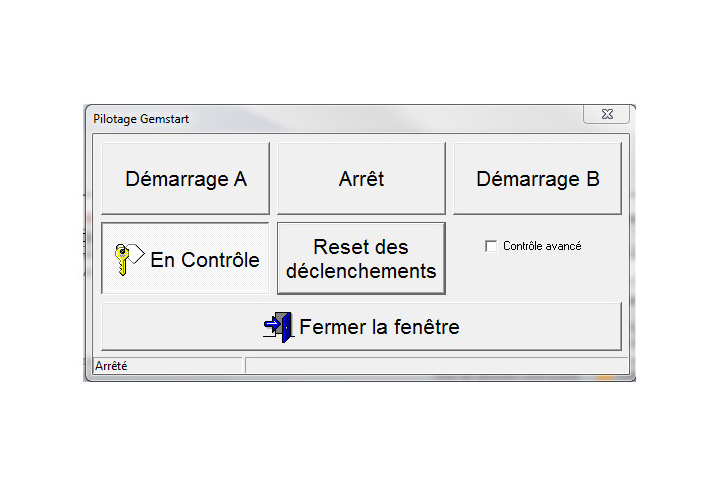

  • START/STOP or OPEN/CLOSE the motor contactor
  • Reset maintenance counters
  • GemStart5 clock synchronization to the laptop time

MAINTENANCE CONTROL UNIT POCKET FOR GEMSTART: COMPLEMENTARY OR ALTERNATIVE TO GEMPRO SOFTWARE

Maintenace unti control pocket for GEMSTART motor relay

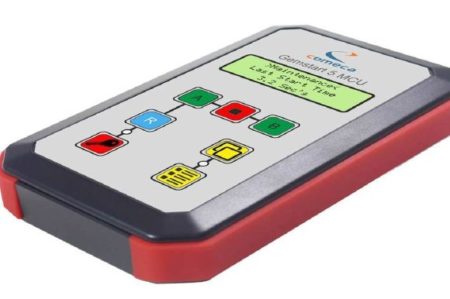

The Maintenance Control Unit (MCU) is a light, robust and compact tool, which gives operators the possibility to Stop, Start or Reset GemStart5 in “Control” mode. In “Monitoring” mode, the MCU displays dynamic electrical values, maintenance information, timers and counters, information linked to the serial link, PTC status and configuration data.

More information in our article "Key benefit of the maintenance control unit for your GemStart".

Gempro DOCUMENTATION & SUPPORTS

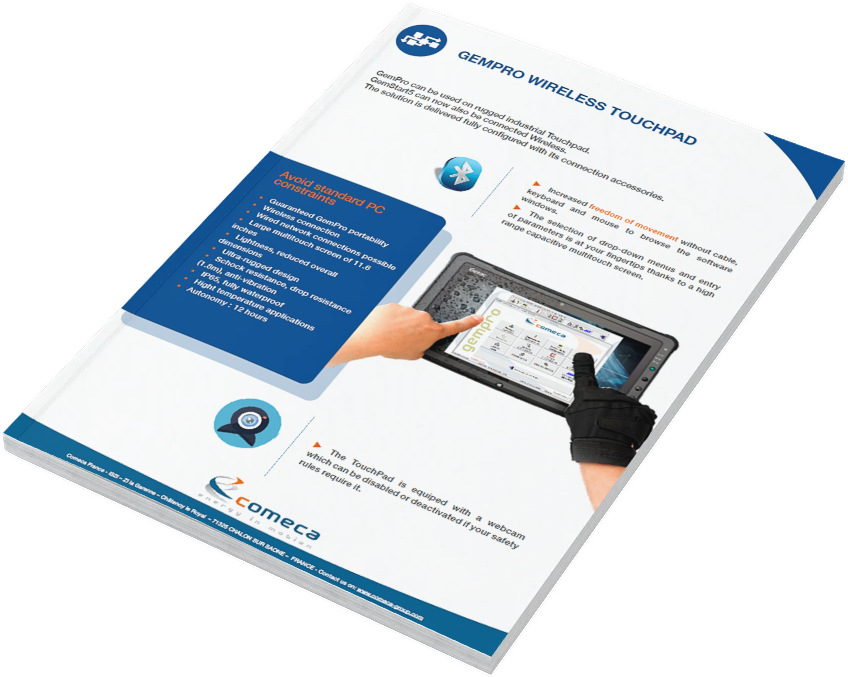

Comeca Gempro wireless touchpad

Download and receive the complete Gempro documentation by email.

  • Gempro software
  • Gempro tablet presentation brochure
  • Gempro User Guide




QUOTE REQUEST

You want to order a GemPro Sofware? Submit your request and our sales department will send you a quote as soon as possible.
